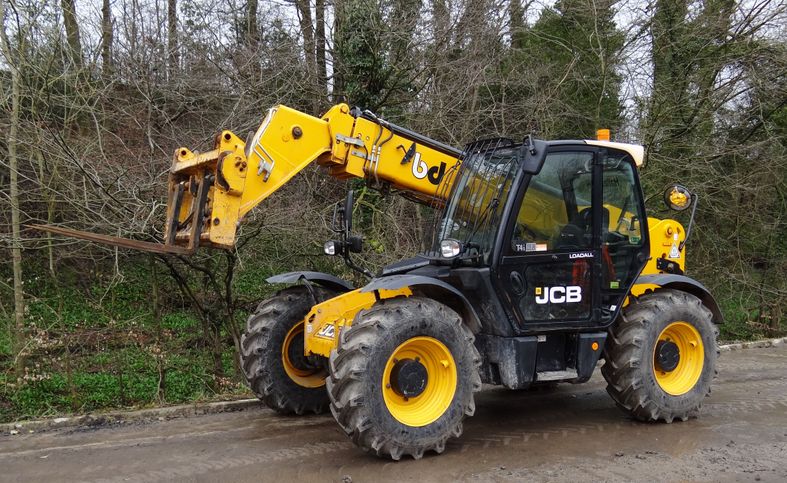

JCB 535/95


The JCB 535-95 is a full-sized 3-stage telescopic handler with a huge reach. It uses a highly efficient Diesel max engine and sits on a chassis that is designed for load-bearing and stability. The side-mounted JCB engine combines with JCB axles and transmission to ensure a reliable drivetrain performance from well-proven components. There is instant steering selection between three modes for easy operation, a tight turn radius and great manoeuvrability

Road Legal On Request

Attachments Available:
Man Basket
Hook Attachment
Bucket
Truss Handler


Manufacturers Technical Data Sheet

Overall Height

2490 mm

Overall  Width

2290 mm

Overall Length

4990 mm

Machine Weight

8020 kg

Fuel Capacity

125 Litres

Maximum Lift Height

9500 mm

Maximum Lift Capacity @ Full Height

1600 kg (3500kg @ 5000mm)

Maximum Reach Forward

6520 mm

Maximum Lift Capacity @ Full Reach

550 kg

Stabilisation Legs

No
